Original SATLINK WS-7990 DVB-T Modulator 4 Route MPEG4 WS7990 with HD-MI/AV

Introduction:

  •   High level of integration, high-performance, Full-featured, integrated design
  •   Single input modulator that converts analogue A/V source to a DVB-T channel
  •   Standard COFDM modulation and H.264 encoding
  •   Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
  •   Bandwidth: 6/7/8MHz
  •   Frequency range: 50~860MHz
  •   Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV
  •   2.4-inch color LCD display
  •   Small size and light weight
  •   Carriers 2K and 8K
  •   User friendly setup and control
  •   Compact and wall mountable





SATLINK WS7990 DVB-T 4 ROUTER MODULATOR

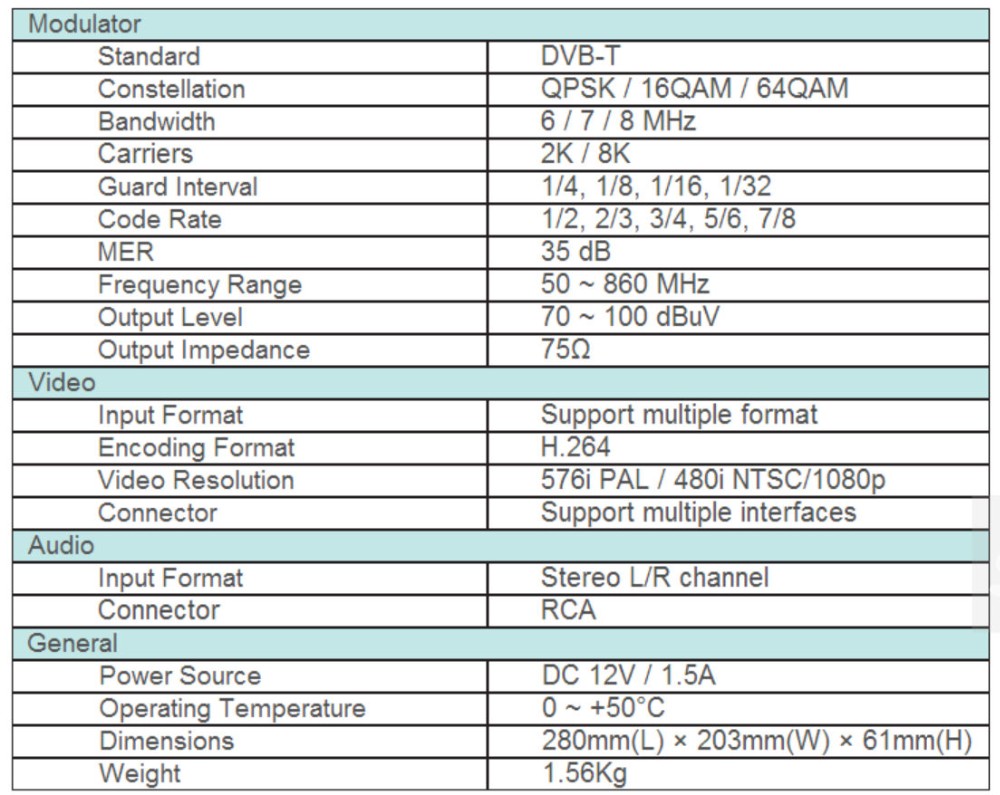

Specifications:

SPECIFICATIONS









Pictures:

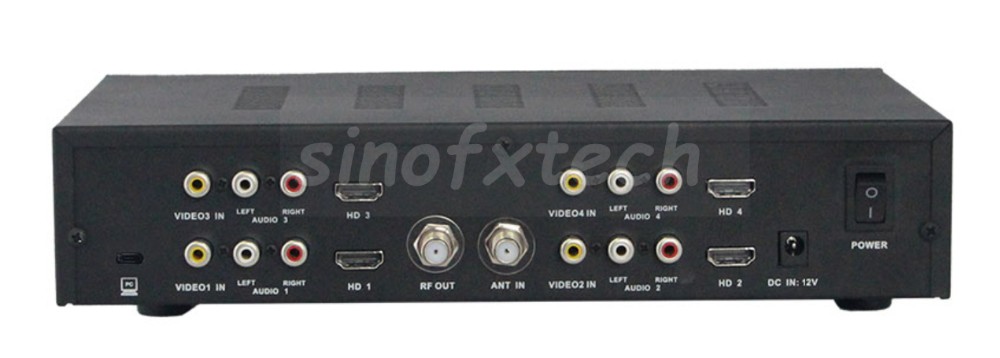

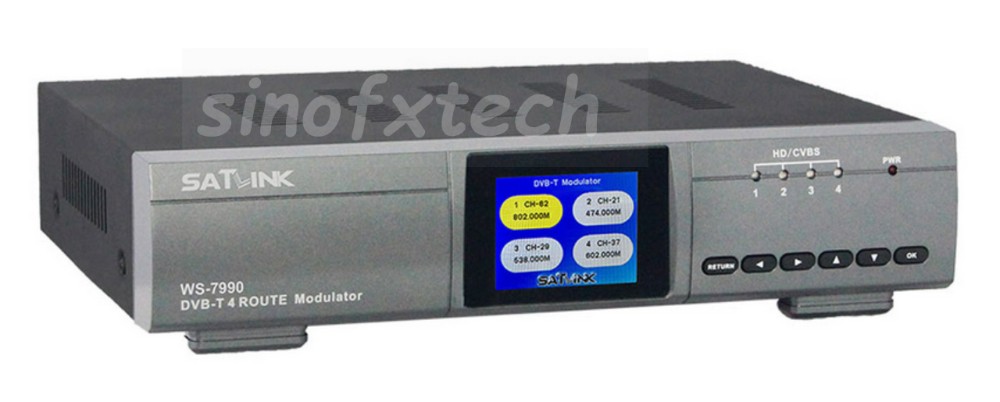

SATLINK WS-7990 DVB-T 4 ROUTER MODULATOR

SATLINK WS7990 DVB-T 4 ROUTER MODULATOR













SATLINK WS7990 DVB-T MODULATOR 4 ROUTER











SATLINK WS7990 DVBT MODULATOR
